ir-smartvision

Smarter Inspection. Superior Quality.

Intelligent defect detection, real-time process insights, and user-friendly operation. IR SmartVision helps you deliver consistent quality, reduce waste, and optimize production.

Book a demo

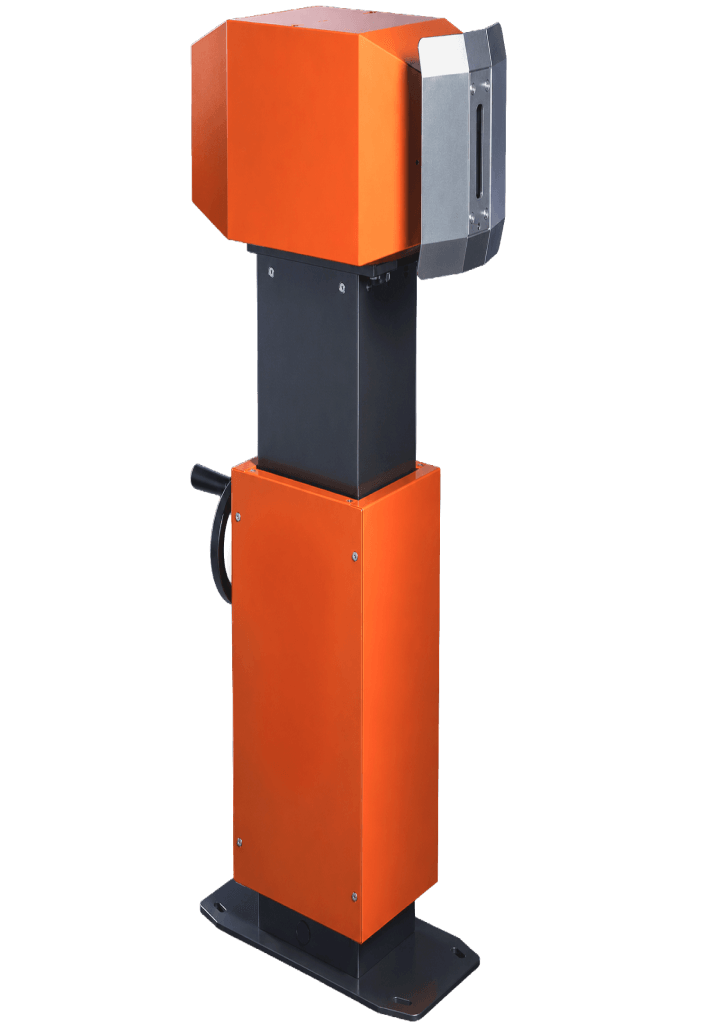

IR Smart Vision camera

added valuea

From data to decisions

IR SmartVision doesn't just find defects. It inspects every container with infrared imaging, learns what a good product looks like, and turns complex infrared data into insights your operators can act on. That way, your team can respond to issues in the forming process quickly and with confidence.

operating principle

360° inspection from three sides

IR SmartVision uses infrared imaging from three sides to achieve a full 360° container inspection. Advanced algorithms analyze the images and turn the data into clear insights.

360
inspection

capability_001

SmartDetection

SmartDetection is a self-learning defect detection algorithm with minimum set up that builds a profile of what a normal container looks like without needing pre-labeled training data or personnel assistance. It uses infrared intensity to learn product-specific features on the fly and flags deviations in real time.

Fewer false rejects on complex containers

Faster product changeovers with quick learning

Improved detection with minimal configuration

  • • Inspection of round and non-round containers
  • • Works with all glass colors and embossed surfaces
  • • Minimal impact from container orientation
  • • Previously excluded embossed areas
  • • Circumferential distribution issues
  • • Choked necks
  • • Birdswings
  • • Inclusions
  • • Thin spots
  • • Blisters
  • • Folds
Infrared view of a container

capability_002

SmartAdvice

SmartAdvice transforms complex infrared data into actionable insights. It monitors the forming process in real time and alerts operators to issues such as gob loading problems or excessive rejections. Through the interface, operators can explore these insights and make informed decisions quickly.

  • • Gob loading problems
  • • Excessive rejections
SmartAdvice interface

capability_003

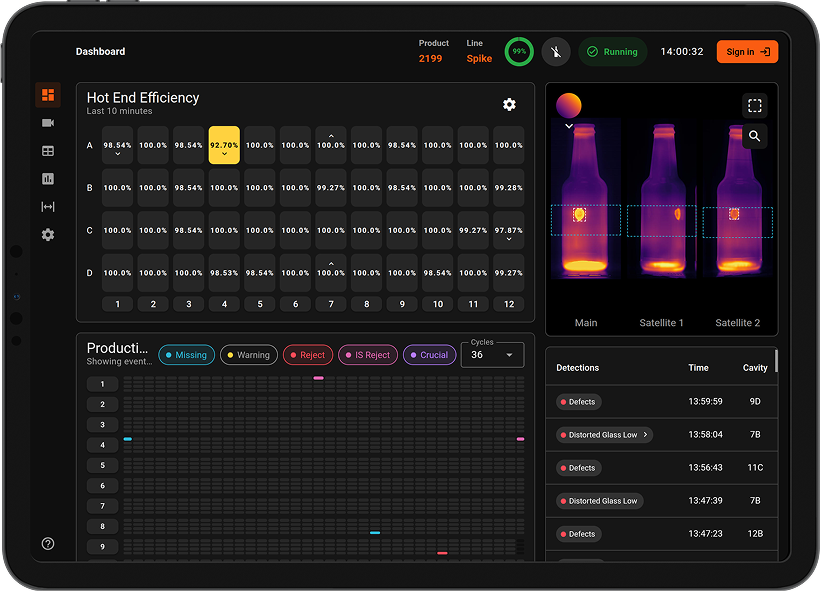

SmartVision

An intuitive interface for continuous monitoring. Get instant insight into production and cavity performance, supported by SmartAdvice, with the key information on one dashboard.

capability_004

SmartView

With infrared imaging from three sides, SmartView provides 360° enhanced bottle coverage. This enables better detection of defects and improves the monitoring of glass distribution.

Three-sided infrared inspection

capability_005

SmartCooling

A compact camera stand with thermoelectric cooling. It reduces the footprint and improves system stability.

  • Thermoelectrically cooled (no chiller)
  • Minimal to no maintenance required
Thermoelectric camera stand

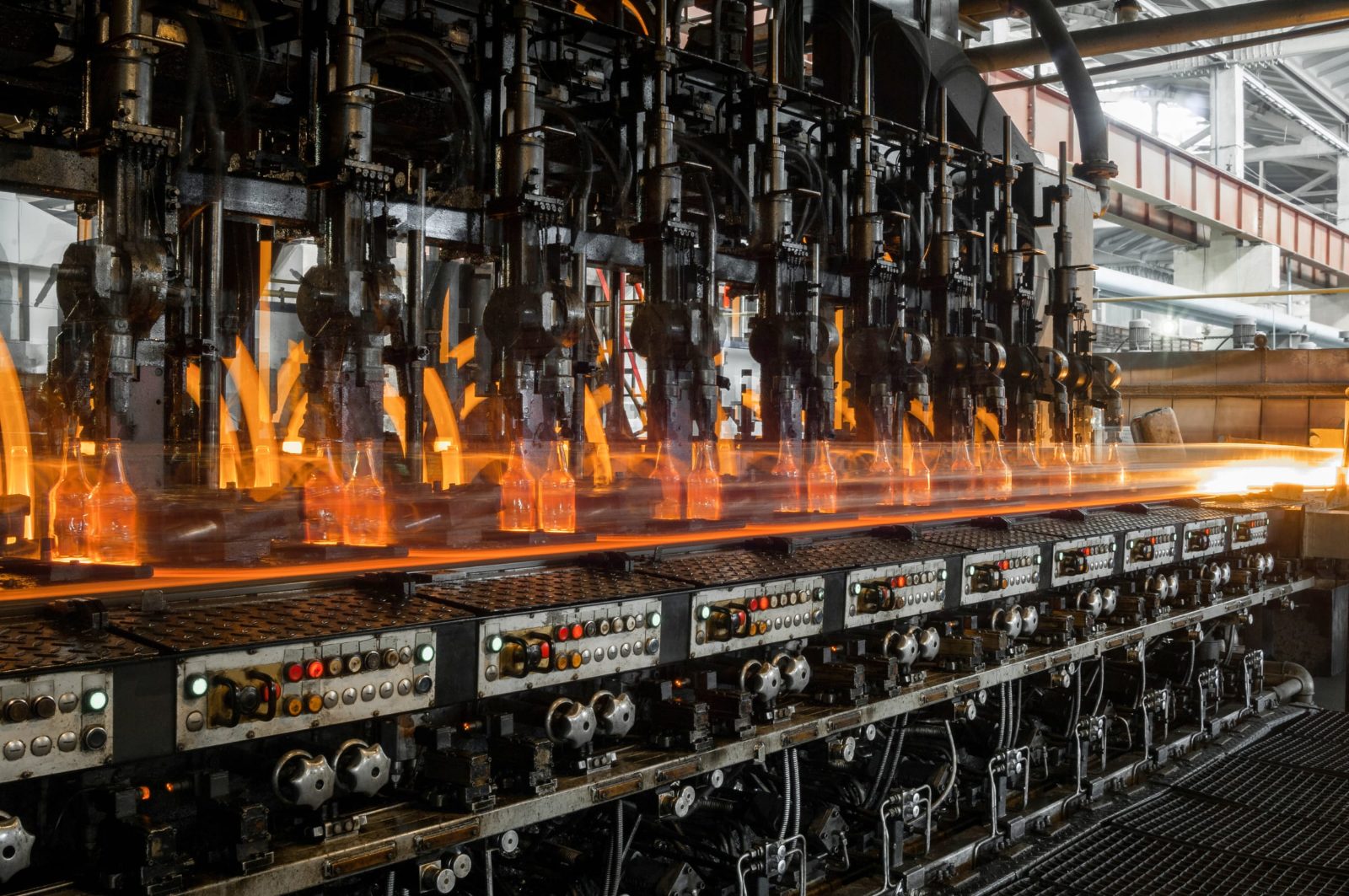

IR Smart Vision on the line

Clear insight from every angle

Infrared imaging from three sides and self-learning detection give your team clear, real-time insight into every container.
